AFR řada
Vysoká přesnost doplněna o vysoké zatížení hřídele
- 7 velikostí: 42 mm až 220 mm; 14 až 2000 Nm
- kompetní rozsah převodových poměrů až do 200:1
- vůle v ozubení až 1 arc. min.
- 3 výstupní hřídele: hladká; s drážkou pro pero; drážkovaná DIN5480
- radiální azížení až 33 000N; axiální až 19 500N
- nízká hlučnost ≤56 dB a vysoká účinnost až 97%
- certifikace ATEX
Řada planetových převodovek Apex AFR je úhlová varianta, která je tvořena kombinací spirálové převodovky a planetové převodovky. Toto spojení představuje velmi krátké a kompaktní řešení. Pevné šasi zaručuje vysokou tuhost celé převodovky.
- Navrženo pro trvalý (S1) nebo cyklický (S5) provoz
- Tělo z nerezové oceli, příruba pro motor z černého hliníku
- Výstupní hřídel z nerezové oceli: 3 druhy - hladká, s perem, drážkovaná
- Výstupní moment:
- T2N : 9 Nm - 2000 Nm
- Převodové poměry
- 1-stupňová: 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14 / 20
- 2-stupňová: 12 / 15 / 16 / 20 / 25 / 28 / 30 / 32 / 35 / 40 / 45 / 48 / 50 / 60 / 64 / 70 / 80 / 90 / 100 / 120 / 140 / 160 / 180 / 200
- * Pouze AFR042, 2-stupňová v převodech 15 a 20.
- Malá vůle v ozubení
- 1-stupňová: ≤ 2 arcmin / ≤ 4 arcmin / ≤ 6 arcmin
- 2-stupňová: ≤ 4 arcmin / ≤ 7 arcmin / ≤ 9 arcmin
- Vysoká účinnost
- 1-stupňová: ≥ 97%
- 2-stupňová: ≥ 94%
- Jednoduchá montáž
- Nízká hlučnost
- Kompaktní provedení
- Velikosti: AFR042 / AFR060 / AFR075 / AFR100 / AFR140 / AFR180 / AFR220
- Převodovka splňuje ATEX certifikaci do prostředí s nebezpečím výbuchu
Možnosti výstupních hřídelí k sérii AFR:

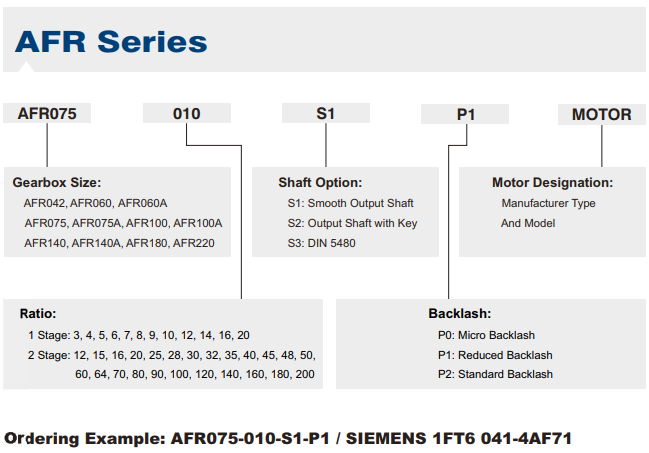

Příklad objednacího kódu:
AFR042-003-S2-P1 , AFR042-003-S2-P2 , AFR042-004-S2-P1 , AFR042-004-S2-P2 , AFR042-005-S2-P1 , AFR042-005-S2-P2 , AFR042-006-S2-P1 , AFR042-006-S2-P2 , AFR042-007-S2-P1 , AFR042-007-S2-P2 , AFR042-008-S2-P1 , AFR042-008-S2-P2 , AFR042-009-S2-P1 , AFR042-009-S2-P2 , AFR042-010-S2-P1 , AFR042-010-S2-P2 , AFR042-015-S2-P1 , AFR042-015-S2-P2 , AFR042-020-S2-P1 , AFR042-020-S2-P2 , AFR042-025-S2-P1 , AFR042-025-S2-P2 , AFR042-030-S2-P1 , AFR042-030-S2-P2 , AFR042-035-S2-P1 , AFR042-035-S2-P2 , AFR042-040-S2-P1 , AFR042-040-S2-P2 , AFR042-045-S2-P1 , AFR042-045-S2-P2 , AFR042-050-S2-P1 , AFR042-050-S2-P2 , AFR042-060-S2-P1 , AFR042-060-S2-P2 , AFR042-070-S2-P1 , AFR042-070-S2-P2 , AFR042-080-S2-P1 , AFR042-080-S2-P2 , AFR042-090-S2-P1 , AFR042-090-S2-P2 , AFR042-100-S2-P1 , AFR042-100-S2-P2 , AFR060-003-S2-P1 , AFR060-003-S2-P2 , AFR060-004-S2-P1 , AFR060-004-S2-P2 , AFR060-005-S2-P1 , AFR060-005-S2-P2 , AFR060-006-S2-P1 , AFR060-006-S2-P2 , AFR060-007-S2-P1 , AFR060-007-S2-P2 , AFR060-008-S2-P1 , AFR060-008-S2-P2 , AFR060-009-S2-P1 , AFR060-009-S2-P2 , AFR060-010-S2-P1 , AFR060-010-S2-P2 , AFR060-014-S2-P1 , AFR060-014-S2-P2 , AFR060-020-S2-P2 , AFR060-025-S2-P1 , AFR060-025-S2-P2 , AFR060-030-S2-P1 , AFR060-030-S2-P2 , AFR060-035-S2-P1 , AFR060-035-S2-P2 , AFR060-040-S2-P1 , AFR060-040-S2-P2 , AFR060-045-S2-P1 , AFR060-045-S2-P2 , AFR060-050-S2-P1 , AFR060-050-S2-P2 , AFR060-060-S2-P1 , AFR060-060-S2-P2 , AFR060-070-S2-P1 , AFR060-070-S2-P2 , AFR060-080-S2-P1 , AFR060-080-S2-P2 , AFR060-090-S2-P1 , AFR060-090-S2-P2 , AFR060-100-S2-P1 , AFR060-100-S2-P2 , AFR075-003-S2-P0 , AFR075-003-S2-P1 , AFR075-003-S2-P2 , AFR075-004-S2-P0 , AFR075-004-S2-P1 , AFR075-004-S2-P2 , AFR075-005-S2-P0 , AFR075-005-S2-P1 , AFR075-005-S2-P2 , AFR075-006-S2-P0 , AFR075-006-S2-P1 , AFR075-006-S2-P2 , AFR075-007-S2-P0 , AFR075-007-S2-P1 , AFR075-007-S2-P2 , AFR075-008-S2-P0 , AFR075-008-S2-P2 , AFR075-009-S2-P0 , AFR075-009-S2-P1 , AFR075-009-S2-P2 , AFR075-010-S2-P0 , AFR075-010-S2-P1 , AFR075-014-S2-P0 , AFR075-014-S2-P1 , AFR075-014-S2-P2 , AFR075-020-S2-P0 , AFR075-020-S2-P1 , AFR075-020-S2-P2 , AFR075-025-S2-P0 , AFR075-025-S2-P1 , AFR075-025-S2-P2 , AFR075-030-S2-P0 , AFR075-030-S2-P1 , AFR075-030-S2-P2 , AFR075-035-S2-P0 , AFR075-035-S2-P1 , AFR075-035-S2-P2 , AFR075-040-S2-P0 , AFR075-040-S2-P1 , AFR075-040-S2-P2 , AFR075-045-S2-P0 , AFR075-045-S2-P1 , AFR075-045-S2-P2 , AFR075-050-S2-P0 , AFR075-050-S2-P1 , AFR075-050-S2-P2 , AFR075-060-S2-P0 , AFR075-060-S2-P1 , AFR075-060-S2-P2 , AFR075-070-S2-P0 , AFR075-070-S2-P1 , AFR075-070-S2-P2 , AFR075-080-S2-P0 , AFR075-080-S2-P1 , AFR075-080-S2-P2 , AFR075-090-S2-P0 , AFR075-090-S2-P1 , AFR075-090-S2-P2 , AFR075-100-S2-P0 , AFR075-100-S2-P1 , AFR075-100-S2-P2 , AFR075-120-S2-P0 , AFR075-120-S2-P1 , AFR075-120-S2-P2 , AFR075-140-S2-P0 , AFR075-140-S2-P1 , AFR075-140-S2-P2 , AFR075-160-S2-P0 , AFR075-160-S2-P1 , AFR075-160-S2-P2 , AFR075-180-S2-P0 , AFR075-180-S2-P1 , AFR075-200-S2-P0 , AFR075-200-S2-P1 , AFR075-200-S2-P2 , AFR100-003-S2-P0 , AFR100-003-S2-P2 , AFR100-004-S2-P0 , AFR100-004-S2-P1 , AFR100-004-S2-P2 , AFR100-005-S2-P0 , AFR100-005-S2-P1 , AFR100-005-S2-P2 , AFR100-006-S2-P0 , AFR100-006-S2-P1 , AFR100-006-S2-P2 , AFR100-007-S2-P0 , AFR100-007-S2-P1 , AFR100-007-S2-P2 , AFR100-008-S2-P0 , AFR100-008-S2-P1 , AFR100-008-S2-P2 , AFR100-009-S2-P0 , AFR100-009-S2-P1 , AFR100-009-S2-P2 , AFR100-010-S2-P0 , AFR100-010-S2-P1 , AFR100-010-S2-P2 , AFR100-014-S2-P0 , AFR100-014-S2-P1 , AFR100-014-S2-P2 , AFR100-020-S2-P0 , AFR100-020-S2-P1 , AFR100-020-S2-P2 , AFR100-025-S2-P0 , AFR100-025-S2-P1 , AFR100-025-S2-P2 , AFR100-030-S2-P0 , AFR100-030-S2-P1 , AFR100-030-S2-P2 , AFR100-035-S2-P0 , AFR100-035-S2-P1 , AFR100-035-S2-P2 , AFR100-040-S2-P0 , AFR100-040-S2-P1 , AFR100-040-S2-P2 , AFR100-045-S2-P0 , AFR100-045-S2-P1 , AFR100-045-S2-P2 , AFR100-050-S2-P0 , AFR100-050-S2-P1 , AFR100-050-S2-P2 , AFR100-060-S2-P0 , AFR100-060-S2-P1 , AFR100-060-S2-P2 , AFR100-070-S2-P0 , AFR100-070-S2-P1 , AFR100-070-S2-P2 , AFR100-080-S2-P0 , AFR100-080-S2-P1 , AFR100-080-S2-P2 , AFR100-090-S2-P0 , AFR100-090-S2-P1 , AFR100-090-S2-P2 , AFR100-100-S2-P0 , AFR100-100-S2-P1 , AFR100-100-S2-P2 , AFR100-120-S2-P0 , AFR100-120-S2-P1 , AFR100-120-S2-P2 , AFR100-140-S2-P0 , AFR100-140-S2-P1 , AFR100-140-S2-P2 , AFR100-160-S2-P0 , AFR100-160-S2-P1 , AFR100-160-S2-P2 , AFR100-180-S2-P0 , AFR100-180-S2-P1 , AFR100-180-S2-P2 , AFR100-200-S2-P0 , AFR100-200-S2-P1 , AFR100-200-S2-P2 , AFR140-003-S2-P0 , AFR140-003-S2-P1 , AFR140-003-S2-P2 , AFR140-004-S2-P0 , AFR140-004-S2-P2 , AFR140-005-S2-P0 , AFR140-005-S2-P1 , AFR140-006-S2-P0 , AFR140-006-S2-P1 , AFR140-006-S2-P2 , AFR140-007-S2-P0 , AFR140-007-S2-P1 , AFR140-007-S2-P2 , AFR140-008-S2-P0 , AFR140-008-S2-P1 , AFR140-008-S2-P2 , AFR140-009-S2-P0 , AFR140-009-S2-P1 , AFR140-009-S2-P2 , AFR140-010-S2-P0 , AFR140-010-S2-P1 , AFR140-010-S2-P2 , AFR140-014-S2-P0 , AFR140-014-S2-P1 , AFR140-014-S2-P2 , AFR140-020-S2-P0 , AFR140-020-S2-P1 , AFR140-020-S2-P2 , AFR140-025-S2-P0 , AFR140-025-S2-P1 , AFR140-025-S2-P2 , AFR140-030-S2-P0 , AFR140-030-S2-P1 , AFR140-030-S2-P2 , AFR140-035-S2-P0 , AFR140-035-S2-P1 , AFR140-035-S2-P2 , AFR140-040-S2-P0 , AFR140-040-S2-P1 , AFR140-040-S2-P2 , AFR140-045-S2-P0 , AFR140-045-S2-P1 , AFR140-045-S2-P2 , AFR140-050-S2-P0 , AFR140-050-S2-P1 , AFR140-060-S2-P0 , AFR140-060-S2-P1 , AFR140-060-S2-P2 , AFR140-070-S2-P0 , AFR140-070-S2-P2 , AFR140-080-S2-P0 , AFR140-080-S2-P1 , AFR140-080-S2-P2 , AFR140-090-S2-P0 , AFR140-090-S2-P1 , AFR140-090-S2-P2 , AFR140-100-S2-P0 , AFR140-100-S2-P1 , AFR140-120-S2-P0 , AFR140-120-S2-P1 , AFR140-120-S2-P2 , AFR140-140-S2-P0 , AFR140-140-S2-P1 , AFR140-140-S2-P2 , AFR140-160-S2-P0 , AFR140-160-S2-P1 , AFR140-160-S2-P2 , AFR140-180-S2-P0 , AFR140-180-S2-P1 , AFR140-180-S2-P2 , AFR140-200-S2-P0 , AFR140-200-S2-P1 , AFR140-200-S2-P2 , AFR180-003-S2-P0 , AFR180-003-S2-P1 , AFR180-003-S2-P2 , AFR180-004-S2-P0 , AFR180-004-S2-P1 , AFR180-004-S2-P2 , AFR180-005-S2-P0 , AFR180-005-S2-P1 , AFR180-006-S2-P0 , AFR180-006-S2-P2 , AFR180-007-S2-P0 , AFR180-007-S2-P1 , AFR180-007-S2-P2 , AFR180-008-S2-P0 , AFR180-008-S2-P1 , AFR180-008-S2-P2 , AFR180-009-S2-P0 , AFR180-009-S2-P1 , AFR180-009-S2-P2 , AFR180-010-S2-P0 , AFR180-010-S2-P1 , AFR180-010-S2-P2 , AFR180-014-S2-P0 , AFR180-014-S2-P1 , AFR180-014-S2-P2 , AFR180-020-S2-P0 , AFR180-020-S2-P1 , AFR180-020-S2-P2 , AFR180-025-S2-P0 , AFR180-025-S2-P1 , AFR180-025-S2-P2 , AFR180-030-S2-P0 , AFR180-030-S2-P1 , AFR180-030-S2-P2 , AFR180-035-S2-P0 , AFR180-035-S2-P1 , AFR180-035-S2-P2 , AFR180-040-S2-P0 , AFR180-040-S2-P2 , AFR180-045-S2-P0 , AFR180-045-S2-P2 , AFR180-050-S2-P0 , AFR180-050-S2-P2 , AFR180-060-S2-P0 , AFR180-060-S2-P1 , AFR180-060-S2-P2 , AFR180-070-S2-P0 , AFR180-070-S2-P1 , AFR180-070-S2-P2 , AFR180-080-S2-P0 , AFR180-080-S2-P1 , AFR180-080-S2-P2 , AFR180-090-S2-P0 , AFR180-090-S2-P1 , AFR180-090-S2-P2 , AFR180-100-S2-P0 , AFR180-100-S2-P1 , AFR180-120-S2-P0 , AFR180-120-S2-P1 , AFR180-120-S2-P2 , AFR180-140-S2-P2 , AFR180-140-S2-P0 , AFR180-140-S2-P1 , AFR180-160-S2-P0 , AFR180-160-S2-P1 , AFR180-160-S2-P2 , AFR180-180-S2-P0 , AFR180-180-S2-P1 , AFR180-180-S2-P2 , AFR180-200-S2-P0 , AFR180-200-S2-P1 , AFR180-200-S2-P2 , AFR220-003-S2-P0 , AFR220-003-S2-P1 , AFR220-003-S2-P2 , AFR220-004-S2-P2 , AFR220-004-S2-P0 , AFR220-004-S2-P1 , AFR220-005-S2-P0 , AFR220-005-S2-P1 , AFR220-005-S2-P2 , AFR220-006-S2-P0 , AFR220-006-S2-P1 , AFR220-006-S2-P2 , AFR220-007-S2-P0 , AFR220-007-S2-P1 , AFR220-007-S2-P2 , AFR220-008-S2-P0 , AFR220-008-S2-P1 , AFR220-008-S2-P2 , AFR220-009-S2-P0 , AFR220-009-S2-P1 , AFR220-009-S2-P2 , AFR220-010-S2-P0 , AFR220-010-S2-P1 , AFR220-010-S2-P2 , AFR220-014-S2-P0 , AFR220-014-S2-P1 , AFR220-014-S2-P2 , AFR220-020-S2-P0 , AFR220-020-S2-P1 , AFR220-020-S2-P2 , AFR220-025-S2-P0 , AFR220-025-S2-P1 , AFR220-025-S2-P2 , AFR220-030-S2-P0 , AFR220-030-S2-P1 , AFR220-030-S2-P2 , AFR220-035-S2-P0 , AFR220-035-S2-P1 , AFR220-035-S2-P2 , AFR220-040-S2-P0 , AFR220-040-S2-P1 , AFR220-040-S2-P2 , AFR220-045-S2-P0 , AFR220-045-S2-P1 , AFR220-045-S2-P2 , AFR220-050-S2-P0 , AFR220-050-S2-P1 , AFR220-050-S2-P2 , AFR220-060-S2-P0 , AFR220-060-S2-P1 , AFR220-060-S2-P2 , AFR220-070-S2-P0 , AFR220-070-S2-P1 , AFR220-070-S2-P2 , AFR220-080-S2-P0 , AFR220-080-S2-P1 , AFR220-080-S2-P2 , AFR220-090-S2-P0 , AFR220-090-S2-P1 , AFR220-090-S2-P2 , AFR220-100-S2-P0 , AFR220-100-S2-P1 , AFR220-100-S2-P2 , AFR220-120-S2-P0 , AFR220-120-S2-P1 , AFR220-120-S2-P2 , AFR220-140-S2-P0 , AFR220-140-S2-P1 , AFR220-160-S2-P0 , AFR220-160-S2-P1 , AFR220-160-S2-P2 , AFR220-180-S2-P0 , AFR220-180-S2-P1 , AFR220-180-S2-P2 , AFR220-200-S2-P0 , AFR220-200-S2-P1 , AFR220-200-S2-P2 , AFR140-100-S2-P2 , AFR075-008-S2-P1 , AFR075-010-S2-P2 , AFR075-180-S2-P2 , AFR100-003-S2-P1 , AFR140-004-S2-P1 , AFR140-005-S2-P2 , AFR140-050-S2-P2 , AFR140-070-S2-P1 , AFR180-005-S2-P2 , AFR180-006-S2-P1 , AFR180-100-S2-P2 , AFR220-140-S2-P2 ,
PARAMETRY
|
Model |
Stupeň | Převod 1 | AFR 042 | AFR 060 | AFR060A | AFR 075 | AFR075A | AFR 100 | AFR100A | AFR 140 | AFR140A | AFR 180 | AFR 220 | ||
| Nominální výstupní moment T2N | Nm | 1 | 3 | 9 | 36 | - | 90 | - | 195 | - | 342 | - | 588 | 1,140 | |
| 4 | 12 | 48 | - | 120 | - | 260 | - | 520 | - | 1,040 | 1,680 | ||||
| 5 | 15 | 60 | - | 150 | - | 325 | - | 650 | - | 1,200 | 2,000 | ||||
| 6 | 20 | 55 | - | 150 | - | 310 | - | 600 | - | 1,100 | 1,900 | ||||
| 7 | 19 | 50 | - | 140 | - | 300 | - | 550 | - | 1,100 | 1,800 | ||||
| 8 | 17 | 45 | - | 120 | - | 260 | - | 500 | - | 1,000 | 1,600 | ||||
| 9 | 14 | 40 | - | 100 | - | 230 | - | 450 | - | 900 | 1,500 | ||||
| 10 | 14 | 40 | - | 100 | - | 230 | - | 450 | - | 900 | 1,500 | ||||
| 12 | - | 55 | - | 150 | - | 310 | - | 600 | - | 1,100 | 1,900 | ||||
| 14 | - | 42 | - | 140 | - | 300 | - | 550 | - | 1,100 | 1,800 | ||||
| 16 | - | 45 | - | 120 | - | 260 | - | 500 | - | 1,000 | 1,600 | ||||
| 20 | - | 40 | - | 100 | - | 230 | - | 450 | - | 900 | 1,500 | ||||
| 2 | 12 | 12 | - | - | - | - | - | - | - | - | - | - | |||
| 15 | 14 | - | - | - | - | - | - | - | - | - | - | ||||
| 16 | 15 | - | - | - | - | - | - | - | - | - | - | ||||
| 20 | 14 | - | - | - | - | - | - | - | - | - | - | ||||
| 25 | 15 | 60 | 60 | 150 | 150 | 325 | 325 | 650 | 650 | 1,200 | 2,000 | ||||
| 28 | 19 | 50 | 50 | 140 | 140 | 300 | 300 | 550 | 550 | 1,100 | 1,900 | ||||
| 30 | 20 | 55 | 55 | 150 | 150 | 310 | 310 | 600 | 600 | 1,100 | 1,900 | ||||
| 32 | 17 | 45 | 45 | 120 | 120 | 260 | 260 | 500 | 500 | 1,000 | 1,600 | ||||
| 35 | 19 | 50 | 50 | 140 | 140 | 300 | 300 | 550 | 550 | 1,100 | 1,800 | ||||
| 40 | 17 | 45 | 45 | 120 | 120 | 260 | 260 | 500 | 500 | 1,000 | 1,600 | ||||
| 45 | 14 | 40 | 40 | 100 | 100 | 230 | 230 | 450 | 450 | 900 | 1,500 | ||||
| 48 | - | - | 55 | 150 | 150 | 310 | 310 | 600 | 600 | 1,100 | 1,900 | ||||
| 50 | 14 | 60 | 60 | 100 | 100 | 230 | 230 | 650 | 650 | 1,200 | 2,000 | ||||
| 60 | 20 | 55 | 55 | 150 | 150 | 310 | 310 | 600 | 600 | 1,100 | 1,900 | ||||
| 64 | - | - | 45 | 120 | 120 | 260 | 260 | 500 | 500 | 1,000 | 1,800 | ||||
| 70 | 19 | 50 | 50 | 140 | 140 | 300 | 300 | 550 | 550 | 1,100 | 1,800 | ||||
| 80 | 17 | 45 | 45 | 120 | 120 | 260 | 260 | 500 | 500 | 1,000 | 1,600 | ||||
| 90 | 14 | 40 | 40 | 100 | 100 | 230 | 230 | 450 | 450 | 900 | 1,500 | ||||
| 100 | 14 | 40 | 60 | 100 | 100 | 230 | 230 | 450 | 450 | 900 | 1,500 | ||||
| 120 | - | - | 55 | 150 | 150 | 310 | 310 | 600 | 600 | 1,100 | 1,900 | ||||
| 140 | - | - | 50 | 140 | 140 | 300 | 300 | 550 | 550 | 1,100 | 1,800 | ||||
| 160 | - | - | 45 | 120 | 120 | 260 | 260 | 550 | 550 | 1,000 | 1,600 | ||||
| 180 | - | - | 40 | 100 | 100 | 230 | 230 | 450 | 450 | 900 | 1,500 | ||||
| 200 | - | - | 40 | 100 | 100 | 230 | 230 | 450 | 450 | 900 | 1,500 | ||||
| Bezpečnostní Stop moment T2NOT3 | Nm | 1,2 | 3~200 | 3 násobek T2N | |||||||||||
| Nominální vstupní rychlost N1N | ot/min | 1,2 | 3~200 | 5,000 | 5,000 | 5,000 | 4,000 | 4,000 | 4,000 | 4,000 | 3,000 | 3,000 | 3,000 | 2,000 | |
| Max. vstupní rychlost N1B | ot/min | 1,2 | 3~200 | 10,000 | 10,000 | 10,000 | 8,000 | 8,000 | 8,000 | 8,000 | 6,000 | 6,000 | 6,000 | 4,000 | |
| Micro vůle P0 | arcmin | 1 | 3~20 | - | - | - | ≤ 2 | - | ≤ 2 | - | ≤ 2 | - | ≤ 2 | ≤ 2 | |
| 2 | 25~200 | - | - | - | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | ≤ 4 | |||
| Snížená vůle P1 | arcmin | 1 | 3~20 | ≤ 4 | ≤ 4 | - | ≤ 4 | - | ≤ 4 | - | ≤ 4 | ≤ 4 | ≤ 4 | ||
| 2 | 25~200 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | ≤ 7 | |||
| Standardní vůle P2 | arcmin | 1 | 3~20 | ≤ 6 | ≤ 6 | - | ≤ 6 | - | ≤ 6 | - | ≤ 6 | - | ≤ 6 | ≤ 6 | |
| 2 | 25~200 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | ≤ 9 | |||
| Torzní tuhost | Nm/ arcmin |
1,2 | 3~200 | 3 | 7 | 7 | 14 | 14 | 25 | 25 | 50 | 50 | 145 | 225 | |
| Max. radiální zatížení F2rB2 | N | 1,2 | 3~200 | 610 | 1,400 | 1,400 | 4,100 | 4,100 | 9,200 | 9,200 | 14,000 | 14,000 | 18,000 | 33,000 | |
| F2a2B2 | N | 1,2 | 3~200 | 320 | 1,100 | 1,100 | 3,700 | 3,700 | 5,800 | 5,800 | 11,400 | 11,400 | 19,500 | 16,300 | |
| Životnost | hodin | 1,2 | 3~200 | 30,000 * | |||||||||||
| Účinnost | % | 1 | 3~20 | ≥ 95 % | |||||||||||
| 2 | 25~200 | ≥ 92 % | |||||||||||||
| Hmotnost | kg | 1 | 3~20 | 0.9 | 2.1 | - | 6.4 | - | 13.9 | - | 23.7 | - | 50 | 83 | |
| 2 | 25~200 | 1.2 | 1.5 | 2,8 | 7.8 | 8 | 15.1 | 15,1 | 26.7 | 29,2 | 54 | 95 | |||
| Provozní teplota | ºC | 1,2 | 3~200 | -10ºC~+90ºC | |||||||||||
| Mazání | 1,2 | 3~200 | Syntetické mazivo (NYOGEL 792D) | ||||||||||||
| Třída krytí | 1,2 | 3~200 | IP65 | ||||||||||||
| Montážní pozice | 1,2 | 3~200 | Všechny polohy | ||||||||||||
| Hlučnost (n1=3000 ot/min, bez zatížení) |
dB(A) | 1,2 | 3~200 | ≤ 61 | ≤ 63 | ≤ 65 | ≤ 68 | ≤ 70 | ≤ 72 | ≤ 74 | |||||
1. Převod( i=N vstup / N výstup )
2. Na střed výstupní hřídle při 100 ot/min
3. Maximální akcelerační moment T2B = 60% ze T2NOT
* S1 životnost 15.000 hodin
SETRVAČNOST
|
Model |
Stupeň | Převod1 | AFR042 | AFR060 | AFR060A | AFR075 | AFR075A | AFR100 | AFR100A | AFR140 | AFR140A | AFR180 | AFR220 | |
| Hodnota setrvačnosti J1 | kg*cm2 | 1 | 3~10 | 0.09 | 0.35 | - | 2.25 | - | 6.84 | - | 23.4 | - | 68.9 | 135.4 |
| 12~20 | - | 0.07 | - | 1.87 | - | 6.25 | - | 21.8 | - | 65.6 | 119.8 | |||
| 2 | 12~20 | 0.09 | - | - | - | - | - | - | - | - | - | - | ||
| 25~90 | 0.09 | 0,09 | 0,35 | 0,35 | 2,25 | 2,25 | 6,84 | 6,84 | 23,4 | 23,4 | 68,9 | |||
| 48,64 | - | - | 0,07 | 0,31 | 1,87 | 1,87 | 6,25 | 6,25 | 21,8 | 21,8 | 65,6 | |||
| 100~200 | - | - | 0,07 | 0,31 | 1,87 | 1,87 | 6,25 | 6,25 | 21,8 | 21,8 | 65,6 | |||
AFR042-003-S2-P1 , AFR042-003-S2-P2 , AFR042-004-S2-P1 , AFR042-004-S2-P2 , AFR042-005-S2-P1 , AFR042-005-S2-P2 , AFR042-006-S2-P1 , AFR042-006-S2-P2 , AFR042-007-S2-P1 , AFR042-007-S2-P2 , AFR042-008-S2-P1 , AFR042-008-S2-P2 , AFR042-009-S2-P1 , AFR042-009-S2-P2 , AFR042-010-S2-P1 , AFR042-010-S2-P2 , AFR042-015-S2-P1 , AFR042-015-S2-P2 , AFR042-020-S2-P1 , AFR042-020-S2-P2 , AFR042-025-S2-P1 , AFR042-025-S2-P2 , AFR042-030-S2-P1 , AFR042-030-S2-P2 , AFR042-035-S2-P1 , AFR042-035-S2-P2 , AFR042-040-S2-P1 , AFR042-040-S2-P2 , AFR042-045-S2-P1 , AFR042-045-S2-P2 , AFR042-050-S2-P1 , AFR042-050-S2-P2 , AFR042-060-S2-P1 , AFR042-060-S2-P2 , AFR042-070-S2-P1 , AFR042-070-S2-P2 , AFR042-080-S2-P1 , AFR042-080-S2-P2 , AFR042-090-S2-P1 , AFR042-090-S2-P2 , AFR042-100-S2-P1 , AFR042-100-S2-P2 , AFR060-003-S2-P1 , AFR060-003-S2-P2 , AFR060-004-S2-P1 , AFR060-004-S2-P2 , AFR060-005-S2-P1 , AFR060-005-S2-P2 , AFR060-006-S2-P1 , AFR060-006-S2-P2 , AFR060-007-S2-P1 , AFR060-007-S2-P2 , AFR060-008-S2-P1 , AFR060-008-S2-P2 , AFR060-009-S2-P1 , AFR060-009-S2-P2 , AFR060-010-S2-P1 , AFR060-010-S2-P2 , AFR060-014-S2-P1 , AFR060-014-S2-P2 , AFR060-020-S2-P2 , AFR060-025-S2-P1 , AFR060-025-S2-P2 , AFR060-030-S2-P1 , AFR060-030-S2-P2 , AFR060-035-S2-P1 , AFR060-035-S2-P2 , AFR060-040-S2-P1 , AFR060-040-S2-P2 , AFR060-045-S2-P1 , AFR060-045-S2-P2 , AFR060-050-S2-P1 , AFR060-050-S2-P2 , AFR060-060-S2-P1 , AFR060-060-S2-P2 , AFR060-070-S2-P1 , AFR060-070-S2-P2 , AFR060-080-S2-P1 , AFR060-080-S2-P2 , AFR060-090-S2-P1 , AFR060-090-S2-P2 , AFR060-100-S2-P1 , AFR060-100-S2-P2 , AFR075-003-S2-P0 , AFR075-003-S2-P1 , AFR075-003-S2-P2 , AFR075-004-S2-P0 , AFR075-004-S2-P1 , AFR075-004-S2-P2 , AFR075-005-S2-P0 , AFR075-005-S2-P1 , AFR075-005-S2-P2 , AFR075-006-S2-P0 , AFR075-006-S2-P1 , AFR075-006-S2-P2 , AFR075-007-S2-P0 , AFR075-007-S2-P1 , AFR075-007-S2-P2 , AFR075-008-S2-P0 , AFR075-008-S2-P2 , AFR075-009-S2-P0 , AFR075-009-S2-P1 , AFR075-009-S2-P2 , AFR075-010-S2-P0 , AFR075-010-S2-P1 , AFR075-014-S2-P0 , AFR075-014-S2-P1 , AFR075-014-S2-P2 , AFR075-020-S2-P0 , AFR075-020-S2-P1 , AFR075-020-S2-P2 , AFR075-025-S2-P0 , AFR075-025-S2-P1 , AFR075-025-S2-P2 , AFR075-030-S2-P0 , AFR075-030-S2-P1 , AFR075-030-S2-P2 , AFR075-035-S2-P0 , AFR075-035-S2-P1 , AFR075-035-S2-P2 , AFR075-040-S2-P0 , AFR075-040-S2-P1 , AFR075-040-S2-P2 , AFR075-045-S2-P0 , AFR075-045-S2-P1 , AFR075-045-S2-P2 , AFR075-050-S2-P0 , AFR075-050-S2-P1 , AFR075-050-S2-P2 , AFR075-060-S2-P0 , AFR075-060-S2-P1 , AFR075-060-S2-P2 , AFR075-070-S2-P0 , AFR075-070-S2-P1 , AFR075-070-S2-P2 , AFR075-080-S2-P0 , AFR075-080-S2-P1 , AFR075-080-S2-P2 , AFR075-090-S2-P0 , AFR075-090-S2-P1 , AFR075-090-S2-P2 , AFR075-100-S2-P0 , AFR075-100-S2-P1 , AFR075-100-S2-P2 , AFR075-120-S2-P0 , AFR075-120-S2-P1 , AFR075-120-S2-P2 , AFR075-140-S2-P0 , AFR075-140-S2-P1 , AFR075-140-S2-P2 , AFR075-160-S2-P0 , AFR075-160-S2-P1 , AFR075-160-S2-P2 , AFR075-180-S2-P0 , AFR075-180-S2-P1 , AFR075-200-S2-P0 , AFR075-200-S2-P1 , AFR075-200-S2-P2 , AFR100-003-S2-P0 , AFR100-003-S2-P2 , AFR100-004-S2-P0 , AFR100-004-S2-P1 , AFR100-004-S2-P2 , AFR100-005-S2-P0 , AFR100-005-S2-P1 , AFR100-005-S2-P2 , AFR100-006-S2-P0 , AFR100-006-S2-P1 , AFR100-006-S2-P2 , AFR100-007-S2-P0 , AFR100-007-S2-P1 , AFR100-007-S2-P2 , AFR100-008-S2-P0 , AFR100-008-S2-P1 , AFR100-008-S2-P2 , AFR100-009-S2-P0 , AFR100-009-S2-P1 , AFR100-009-S2-P2 , AFR100-010-S2-P0 , AFR100-010-S2-P1 , AFR100-010-S2-P2 , AFR100-014-S2-P0 , AFR100-014-S2-P1 , AFR100-014-S2-P2 , AFR100-020-S2-P0 , AFR100-020-S2-P1 , AFR100-020-S2-P2 , AFR100-025-S2-P0 , AFR100-025-S2-P1 , AFR100-025-S2-P2 , AFR100-030-S2-P0 , AFR100-030-S2-P1 , AFR100-030-S2-P2 , AFR100-035-S2-P0 , AFR100-035-S2-P1 , AFR100-035-S2-P2 , AFR100-040-S2-P0 , AFR100-040-S2-P1 , AFR100-040-S2-P2 , AFR100-045-S2-P0 , AFR100-045-S2-P1 , AFR100-045-S2-P2 , AFR100-050-S2-P0 , AFR100-050-S2-P1 , AFR100-050-S2-P2 , AFR100-060-S2-P0 , AFR100-060-S2-P1 , AFR100-060-S2-P2 , AFR100-070-S2-P0 , AFR100-070-S2-P1 , AFR100-070-S2-P2 , AFR100-080-S2-P0 , AFR100-080-S2-P1 , AFR100-080-S2-P2 , AFR100-090-S2-P0 , AFR100-090-S2-P1 , AFR100-090-S2-P2 , AFR100-100-S2-P0 , AFR100-100-S2-P1 , AFR100-100-S2-P2 , AFR100-120-S2-P0 , AFR100-120-S2-P1 , AFR100-120-S2-P2 , AFR100-140-S2-P0 , AFR100-140-S2-P1 , AFR100-140-S2-P2 , AFR100-160-S2-P0 , AFR100-160-S2-P1 , AFR100-160-S2-P2 , AFR100-180-S2-P0 , AFR100-180-S2-P1 , AFR100-180-S2-P2 , AFR100-200-S2-P0 , AFR100-200-S2-P1 , AFR100-200-S2-P2 , AFR140-003-S2-P0 , AFR140-003-S2-P1 , AFR140-003-S2-P2 , AFR140-004-S2-P0 , AFR140-004-S2-P2 , AFR140-005-S2-P0 , AFR140-005-S2-P1 , AFR140-006-S2-P0 , AFR140-006-S2-P1 , AFR140-006-S2-P2 , AFR140-007-S2-P0 , AFR140-007-S2-P1 , AFR140-007-S2-P2 , AFR140-008-S2-P0 , AFR140-008-S2-P1 , AFR140-008-S2-P2 , AFR140-009-S2-P0 , AFR140-009-S2-P1 , AFR140-009-S2-P2 , AFR140-010-S2-P0 , AFR140-010-S2-P1 , AFR140-010-S2-P2 , AFR140-014-S2-P0 , AFR140-014-S2-P1 , AFR140-014-S2-P2 , AFR140-020-S2-P0 , AFR140-020-S2-P1 , AFR140-020-S2-P2 , AFR140-025-S2-P0 , AFR140-025-S2-P1 , AFR140-025-S2-P2 , AFR140-030-S2-P0 , AFR140-030-S2-P1 , AFR140-030-S2-P2 , AFR140-035-S2-P0 , AFR140-035-S2-P1 , AFR140-035-S2-P2 , AFR140-040-S2-P0 , AFR140-040-S2-P1 , AFR140-040-S2-P2 , AFR140-045-S2-P0 , AFR140-045-S2-P1 , AFR140-045-S2-P2 , AFR140-050-S2-P0 , AFR140-050-S2-P1 , AFR140-060-S2-P0 , AFR140-060-S2-P1 , AFR140-060-S2-P2 , AFR140-070-S2-P0 , AFR140-070-S2-P2 , AFR140-080-S2-P0 , AFR140-080-S2-P1 , AFR140-080-S2-P2 , AFR140-090-S2-P0 , AFR140-090-S2-P1 , AFR140-090-S2-P2 , AFR140-100-S2-P0 , AFR140-100-S2-P1 , AFR140-120-S2-P0 , AFR140-120-S2-P1 , AFR140-120-S2-P2 , AFR140-140-S2-P0 , AFR140-140-S2-P1 , AFR140-140-S2-P2 , AFR140-160-S2-P0 , AFR140-160-S2-P1 , AFR140-160-S2-P2 , AFR140-180-S2-P0 , AFR140-180-S2-P1 , AFR140-180-S2-P2 , AFR140-200-S2-P0 , AFR140-200-S2-P1 , AFR140-200-S2-P2 , AFR180-003-S2-P0 , AFR180-003-S2-P1 , AFR180-003-S2-P2 , AFR180-004-S2-P0 , AFR180-004-S2-P1 , AFR180-004-S2-P2 , AFR180-005-S2-P0 , AFR180-005-S2-P1 , AFR180-006-S2-P0 , AFR180-006-S2-P2 , AFR180-007-S2-P0 , AFR180-007-S2-P1 , AFR180-007-S2-P2 , AFR180-008-S2-P0 , AFR180-008-S2-P1 , AFR180-008-S2-P2 , AFR180-009-S2-P0 , AFR180-009-S2-P1 , AFR180-009-S2-P2 , AFR180-010-S2-P0 , AFR180-010-S2-P1 , AFR180-010-S2-P2 , AFR180-014-S2-P0 , AFR180-014-S2-P1 , AFR180-014-S2-P2 , AFR180-020-S2-P0 , AFR180-020-S2-P1 , AFR180-020-S2-P2 , AFR180-025-S2-P0 , AFR180-025-S2-P1 , AFR180-025-S2-P2 , AFR180-030-S2-P0 , AFR180-030-S2-P1 , AFR180-030-S2-P2 , AFR180-035-S2-P0 , AFR180-035-S2-P1 , AFR180-035-S2-P2 , AFR180-040-S2-P0 , AFR180-040-S2-P2 , AFR180-045-S2-P0 , AFR180-045-S2-P2 , AFR180-050-S2-P0 , AFR180-050-S2-P2 , AFR180-060-S2-P0 , AFR180-060-S2-P1 , AFR180-060-S2-P2 , AFR180-070-S2-P0 , AFR180-070-S2-P1 , AFR180-070-S2-P2 , AFR180-080-S2-P0 , AFR180-080-S2-P1 , AFR180-080-S2-P2 , AFR180-090-S2-P0 , AFR180-090-S2-P1 , AFR180-090-S2-P2 , AFR180-100-S2-P0 , AFR180-100-S2-P1 , AFR180-120-S2-P0 , AFR180-120-S2-P1 , AFR180-120-S2-P2 , AFR180-140-S2-P2 , AFR180-140-S2-P0 , AFR180-140-S2-P1 , AFR180-160-S2-P0 , AFR180-160-S2-P1 , AFR180-160-S2-P2 , AFR180-180-S2-P0 , AFR180-180-S2-P1 , AFR180-180-S2-P2 , AFR180-200-S2-P0 , AFR180-200-S2-P1 , AFR180-200-S2-P2 , AFR220-003-S2-P0 , AFR220-003-S2-P1 , AFR220-003-S2-P2 , AFR220-004-S2-P2 , AFR220-004-S2-P0 , AFR220-004-S2-P1 , AFR220-005-S2-P0 , AFR220-005-S2-P1 , AFR220-005-S2-P2 , AFR220-006-S2-P0 , AFR220-006-S2-P1 , AFR220-006-S2-P2 , AFR220-007-S2-P0 , AFR220-007-S2-P1 , AFR220-007-S2-P2 , AFR220-008-S2-P0 , AFR220-008-S2-P1 , AFR220-008-S2-P2 , AFR220-009-S2-P0 , AFR220-009-S2-P1 , AFR220-009-S2-P2 , AFR220-010-S2-P0 , AFR220-010-S2-P1 , AFR220-010-S2-P2 , AFR220-014-S2-P0 , AFR220-014-S2-P1 , AFR220-014-S2-P2 , AFR220-020-S2-P0 , AFR220-020-S2-P1 , AFR220-020-S2-P2 , AFR220-025-S2-P0 , AFR220-025-S2-P1 , AFR220-025-S2-P2 , AFR220-030-S2-P0 , AFR220-030-S2-P1 , AFR220-030-S2-P2 , AFR220-035-S2-P0 , AFR220-035-S2-P1 , AFR220-035-S2-P2 , AFR220-040-S2-P0 , AFR220-040-S2-P1 , AFR220-040-S2-P2 , AFR220-045-S2-P0 , AFR220-045-S2-P1 , AFR220-045-S2-P2 , AFR220-050-S2-P0 , AFR220-050-S2-P1 , AFR220-050-S2-P2 , AFR220-060-S2-P0 , AFR220-060-S2-P1 , AFR220-060-S2-P2 , AFR220-070-S2-P0 , AFR220-070-S2-P1 , AFR220-070-S2-P2 , AFR220-080-S2-P0 , AFR220-080-S2-P1 , AFR220-080-S2-P2 , AFR220-090-S2-P0 , AFR220-090-S2-P1 , AFR220-090-S2-P2 , AFR220-100-S2-P0 , AFR220-100-S2-P1 , AFR220-100-S2-P2 , AFR220-120-S2-P0 , AFR220-120-S2-P1 , AFR220-120-S2-P2 , AFR220-140-S2-P0 , AFR220-140-S2-P1 , AFR220-160-S2-P0 , AFR220-160-S2-P1 , AFR220-160-S2-P2 , AFR220-180-S2-P0 , AFR220-180-S2-P1 , AFR220-180-S2-P2 , AFR220-200-S2-P0 , AFR220-200-S2-P1 , AFR220-200-S2-P2 , AFR140-100-S2-P2 , AFR075-008-S2-P1 , AFR075-010-S2-P2 , AFR075-180-S2-P2 , AFR100-003-S2-P1 , AFR140-004-S2-P1 , AFR140-005-S2-P2 , AFR140-050-S2-P2 , AFR140-070-S2-P1 , AFR180-005-S2-P2 , AFR180-006-S2-P1 , AFR180-100-S2-P2 , AFR220-140-S2-P2 ,
ROZMĚRY

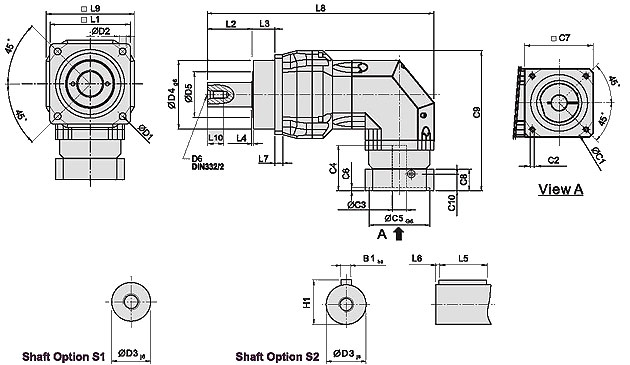

AFR řada, 1-stupňová, převod i= 3 - 20
| AFR042 | AFR060 | AFR075 | AFR100 | AFR140 | AFR180 | AFR220 | |
| D1 | 50 | 68 | 85 | 120 | 165 | 215 | 250 |
| D2 | 3.4 | 5.5 | 6.8 | 9 | 11 | 13 | 17 |
| D3 j6 | 13 | 16 | 22 | 32 | 40 | 55 | 75 |
| D4 g6 | 35 | 60 | 70 | 90 | 130 | 160 | 180 |
| D5 | 22 | 45 | 60 | 80 | 75 | 95 | 115 |
| D6 | M4 X 0.7P | M5 X 0.8P | M8 X 1.25P | M12X1.75P | M16 X 2P | M20 X 2.5P | M20 X 2.5P |
| L1 | 42 | 62 | 76 | 105 | 142 | 180 | 220 |
| L2 | 19.5 | 28.5 | 36 | 58 | 82 | 82 | 105 |
| L3 | 6.5 | 20 | 20 | 30 | 30 | 30 | 33 |
| L4 | 1 | 1.5 | 2 | 2 | 3 | 3 | 3 |
| L5 | 16 | 25 | 32 | 40 | 63 | 70 | 90 |
| L6 | 2 | 2 | 3 | 5 | 5 | 6 | 7 |
| L7 | 4 | 6 | 7 | 10 | 12 | 15 | 20 |
| L8 | 115.5 | 150 | 219 | 269.5 | 338.5 | 397 | 484 |
| L9 | 42 | 60 | 90 | 115 | 142 | 180 | 220 |
| L10 | 10 | 12.5 | 19 | 28 | 36 | 42 | 42 |
| C1 3 | 46 | 70 | 100 | 130 | 165 | 215 | 235 |
| C2 3 | M4 X 0.7P | M5 X 0.8P | M6 X 1P | M8 X 1.25P | M10 X 1.5P | M12 X 1.75P | M12 X 1.75P |
| C3 3 | ≤11 | ≤14 / ≤16 | ≤19 / ≤24 | ≤32 | ≤38 | ≤48 | ≤55 |
| C4 3 | 25 | 34 | 40 | 50 | 60 | 85 | 116 |
| C5 3 G6 | 30 | 50 | 80 | 110 | 130 | 180 | 200 |
| C63 | 3.5 | 8 | 4 | 5 | 6 | 6 | 6 |
| C7 3 | 42 | 60 | 90 | 115 | 142 | 190 | 220 |
| C8 3 | 29.5 | 19 | 17 | 19.5 | 22.5 | 29 | 63 |
| C9 3 | 90.5 | 111.5 | 152.5 | 191.5 | 235.5 | 303.5 | 378.5 |
| C10 3 | 8.75 | 13.5 | 10.75 | 13 | 15 | 20.75 | 53 |
| B1 h9 | 5 | 5 | 6 | 10 | 12 | 16 | 20 |
| H1 | 15 | 18 | 24.5 | 35 | 43 | 59 | 79.5 |
3. C1~C10 jsou rozměry motoru
* AFR060M1 nabízí možnost C3 ≤16
* AFR075M1 nabízí možnost C3 ≤24

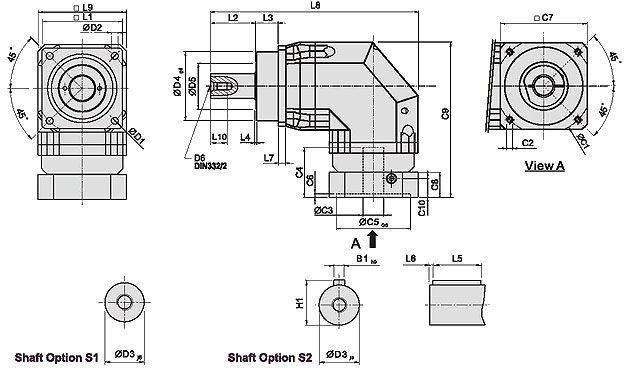

AFR řada, 2-stupňová, převod i= 15 - 200
| AFR042 | AFR060 | AFR060A | AFR075 | AFR075A | AFR100 | AFR100A | AFR140 | AFR140A | AFR180 | AFR220 | |
| D1 | 50 | 68 | 85 | 120 | 165 | 215 | 250 | ||||
| D2 | 3.4 | 5.5 | 6.8 | 9 | 11 | 13 | 17 | ||||
| D3 j6 | 13 | 16 | 22 | 32 | 40 | 55 | 75 | ||||
| D4 g6 | 35 | 60 | 70 | 90 | 130 | 160 | 180 | ||||
| D5 | 22 | 45 | 60 | 80 | 75 | 95 | 115 | ||||
| D6 | M4 X 0.7P | M5 X 0,8P | M8 X 1.25P | M12 X1.75P | M16 X 2P | M20 X 2.5P | M20 X 2.5P | ||||
| D7 | - | 16 | 22 | 32 | 40 | 55 | 75 | ||||
| L1 | 42 | 62 | 76 | 105 | 142 | 180 | 220 | ||||
| L2 | 19.5 | 28.5 | 36 | 58 | 82 | 82 | 105 | ||||
| L3 | 6.5 | 20 | 20 | 30 | 30 | 30 | 33 | ||||
| L4 | 1 | 1.5 | 2 | 2 | 3 | 3 | 3 | ||||
| L5 | 16 | 25 | 32 | 40 | 63 | 70 | 90 | ||||
| L6 | 2 | 2 | 3 | 5 | 5 | 6 | 7 | ||||
| L7 | 4 | 6 | 7 | 10 | 12 | 15 | 20 | ||||
| L8 | 139 | 168.5 | 187 | 222.5 | 267 | 295.5 | 330,5 | 370.5 | 410 | 434 | 521 |
| L9 | 42 | 60 | 90 | 115 | 142 | 180 | 220 | ||||
| L10 | 10 | 12,5 | 19 | 28 | 36 | 42 | 42 | ||||
| L11 | - | 26 | 26 | 26 | 40 | 41,5 | 52 | ||||
| L12 | - | 15 | 15 | 15 | 20 | 21,5 | 28 | ||||
| L13 | - | 21 | 22,5 | 22,5 | 33,5 | 33,5 | 45 | ||||
| C1 4 | 46 | 46 | 70 | 70 | 100 | 100 | 130 | 130 | 165 | 165 | 215 |
| C2 4 | M4 X 0.7P | M4 X 0.7P | M5 X 0,8P | M5 X 0.8P | M6 X 1 P | M6 X 1P | M8 X 1,25P | M8 X 1.25P | M10 X 1,5P | M10 X 1.5P | M12 X 1.75P |
| C3 4 | ≤11 | ≤11 / ≤12 | ≤14 / ≤16 | ≤14 / ≤15.875 / ≤16 |
≤19/≤24 | ≤19 / ≤24 | 32 | ≤32 | ≤38 | ≤38 | ≤48 |
| C4 4 | 25 | 25 | 34 | 34 | 40 | 40 | 50 | 50 | 60 | 60 | 85 |
| C5 4 G6 | 30 | 30 | 50 | 50 | 80 | 80 | 110 | 110 | 130 | 130 | 180 |
| C6 4 | 3.5 | 3.5 | 8 | 8 | 4 | 4 | 5 | 5 | 6 | 6 | 6 |
| C7 4 | 42 | 42 | 60 | 60 | 90 | 90 | 115 | 115 | 142 | 142 | 190 |
| C8 4 | 29.5 | 29.5 | 19 | 19 | 17 | 17 | 19,5 | 19.5 | 22,5 | 22.5 | 29 |
| C9 4 | 90.5 | 99.5 | 111,5 | 126.5 | 152,5 | 165 | 191,5 | 205 | 235,5 | 254.5 | 323.5 |
| C10 4 | 8.75 | 8.75 | 13,5 | 13.5 | 10,75 | 10.75 | 13 | 13 | 15 | 15 | 20.75 |
| B1 h9 | 5 | 5 | 6 | 10 | 12 | 16 | 20 | ||||
| H1 | 15 | 18 | 24.5 | 35 | 43 | 59 | 79.5 | ||||
| X DIN5480 | - | W16 X 0,8 X 30 X 18 X 6m | W22 X 1,25 X 30 X 16 X 6m | W32 X 1,25 X 30 X 24 X 6m | W40 X 2 X 30 X 18 X 6m | W55 X 2 X 30 X 18 X 6m | W70 X 2 X 30 X 34 X 6m | ||||
4. C1~C10 jsou rozměry motoru
* AFR060M1 nabízí možnost C3 ≤12
* AFR075M1 nabízí možnost C3 ≤16
* AFR075M2 nabízí možnost C3 ≤15.875
* AFR100M1 nabízí možnost C3 ≤24
AFR042-003-S2-P1 , AFR042-003-S2-P2 , AFR042-004-S2-P1 , AFR042-004-S2-P2 , AFR042-005-S2-P1 , AFR042-005-S2-P2 , AFR042-006-S2-P1 , AFR042-006-S2-P2 , AFR042-007-S2-P1 , AFR042-007-S2-P2 , AFR042-008-S2-P1 , AFR042-008-S2-P2 , AFR042-009-S2-P1 , AFR042-009-S2-P2 , AFR042-010-S2-P1 , AFR042-010-S2-P2 , AFR042-015-S2-P1 , AFR042-015-S2-P2 , AFR042-020-S2-P1 , AFR042-020-S2-P2 , AFR042-025-S2-P1 , AFR042-025-S2-P2 , AFR042-030-S2-P1 , AFR042-030-S2-P2 , AFR042-035-S2-P1 , AFR042-035-S2-P2 , AFR042-040-S2-P1 , AFR042-040-S2-P2 , AFR042-045-S2-P1 , AFR042-045-S2-P2 , AFR042-050-S2-P1 , AFR042-050-S2-P2 , AFR042-060-S2-P1 , AFR042-060-S2-P2 , AFR042-070-S2-P1 , AFR042-070-S2-P2 , AFR042-080-S2-P1 , AFR042-080-S2-P2 , AFR042-090-S2-P1 , AFR042-090-S2-P2 , AFR042-100-S2-P1 , AFR042-100-S2-P2 , AFR060-003-S2-P1 , AFR060-003-S2-P2 , AFR060-004-S2-P1 , AFR060-004-S2-P2 , AFR060-005-S2-P1 , AFR060-005-S2-P2 , AFR060-006-S2-P1 , AFR060-006-S2-P2 , AFR060-007-S2-P1 , AFR060-007-S2-P2 , AFR060-008-S2-P1 , AFR060-008-S2-P2 , AFR060-009-S2-P1 , AFR060-009-S2-P2 , AFR060-010-S2-P1 , AFR060-010-S2-P2 , AFR060-014-S2-P1 , AFR060-014-S2-P2 , AFR060-020-S2-P2 , AFR060-025-S2-P1 , AFR060-025-S2-P2 , AFR060-030-S2-P1 , AFR060-030-S2-P2 , AFR060-035-S2-P1 , AFR060-035-S2-P2 , AFR060-040-S2-P1 , AFR060-040-S2-P2 , AFR060-045-S2-P1 , AFR060-045-S2-P2 , AFR060-050-S2-P1 , AFR060-050-S2-P2 , AFR060-060-S2-P1 , AFR060-060-S2-P2 , AFR060-070-S2-P1 , AFR060-070-S2-P2 , AFR060-080-S2-P1 , AFR060-080-S2-P2 , AFR060-090-S2-P1 , AFR060-090-S2-P2 , AFR060-100-S2-P1 , AFR060-100-S2-P2 , AFR075-003-S2-P0 , AFR075-003-S2-P1 , AFR075-003-S2-P2 , AFR075-004-S2-P0 , AFR075-004-S2-P1 , AFR075-004-S2-P2 , AFR075-005-S2-P0 , AFR075-005-S2-P1 , AFR075-005-S2-P2 , AFR075-006-S2-P0 , AFR075-006-S2-P1 , AFR075-006-S2-P2 , AFR075-007-S2-P0 , AFR075-007-S2-P1 , AFR075-007-S2-P2 , AFR075-008-S2-P0 , AFR075-008-S2-P2 , AFR075-009-S2-P0 , AFR075-009-S2-P1 , AFR075-009-S2-P2 , AFR075-010-S2-P0 , AFR075-010-S2-P1 , AFR075-014-S2-P0 , AFR075-014-S2-P1 , AFR075-014-S2-P2 , AFR075-020-S2-P0 , AFR075-020-S2-P1 , AFR075-020-S2-P2 , AFR075-025-S2-P0 , AFR075-025-S2-P1 , AFR075-025-S2-P2 , AFR075-030-S2-P0 , AFR075-030-S2-P1 , AFR075-030-S2-P2 , AFR075-035-S2-P0 , AFR075-035-S2-P1 , AFR075-035-S2-P2 , AFR075-040-S2-P0 , AFR075-040-S2-P1 , AFR075-040-S2-P2 , AFR075-045-S2-P0 , AFR075-045-S2-P1 , AFR075-045-S2-P2 , AFR075-050-S2-P0 , AFR075-050-S2-P1 , AFR075-050-S2-P2 , AFR075-060-S2-P0 , AFR075-060-S2-P1 , AFR075-060-S2-P2 , AFR075-070-S2-P0 , AFR075-070-S2-P1 , AFR075-070-S2-P2 , AFR075-080-S2-P0 , AFR075-080-S2-P1 , AFR075-080-S2-P2 , AFR075-090-S2-P0 , AFR075-090-S2-P1 , AFR075-090-S2-P2 , AFR075-100-S2-P0 , AFR075-100-S2-P1 , AFR075-100-S2-P2 , AFR075-120-S2-P0 , AFR075-120-S2-P1 , AFR075-120-S2-P2 , AFR075-140-S2-P0 , AFR075-140-S2-P1 , AFR075-140-S2-P2 , AFR075-160-S2-P0 , AFR075-160-S2-P1 , AFR075-160-S2-P2 , AFR075-180-S2-P0 , AFR075-180-S2-P1 , AFR075-200-S2-P0 , AFR075-200-S2-P1 , AFR075-200-S2-P2 , AFR100-003-S2-P0 , AFR100-003-S2-P2 , AFR100-004-S2-P0 , AFR100-004-S2-P1 , AFR100-004-S2-P2 , AFR100-005-S2-P0 , AFR100-005-S2-P1 , AFR100-005-S2-P2 , AFR100-006-S2-P0 , AFR100-006-S2-P1 , AFR100-006-S2-P2 , AFR100-007-S2-P0 , AFR100-007-S2-P1 , AFR100-007-S2-P2 , AFR100-008-S2-P0 , AFR100-008-S2-P1 , AFR100-008-S2-P2 , AFR100-009-S2-P0 , AFR100-009-S2-P1 , AFR100-009-S2-P2 , AFR100-010-S2-P0 , AFR100-010-S2-P1 , AFR100-010-S2-P2 , AFR100-014-S2-P0 , AFR100-014-S2-P1 , AFR100-014-S2-P2 , AFR100-020-S2-P0 , AFR100-020-S2-P1 , AFR100-020-S2-P2 , AFR100-025-S2-P0 , AFR100-025-S2-P1 , AFR100-025-S2-P2 , AFR100-030-S2-P0 , AFR100-030-S2-P1 , AFR100-030-S2-P2 , AFR100-035-S2-P0 , AFR100-035-S2-P1 , AFR100-035-S2-P2 , AFR100-040-S2-P0 , AFR100-040-S2-P1 , AFR100-040-S2-P2 , AFR100-045-S2-P0 , AFR100-045-S2-P1 , AFR100-045-S2-P2 , AFR100-050-S2-P0 , AFR100-050-S2-P1 , AFR100-050-S2-P2 , AFR100-060-S2-P0 , AFR100-060-S2-P1 , AFR100-060-S2-P2 , AFR100-070-S2-P0 , AFR100-070-S2-P1 , AFR100-070-S2-P2 , AFR100-080-S2-P0 , AFR100-080-S2-P1 , AFR100-080-S2-P2 , AFR100-090-S2-P0 , AFR100-090-S2-P1 , AFR100-090-S2-P2 , AFR100-100-S2-P0 , AFR100-100-S2-P1 , AFR100-100-S2-P2 , AFR100-120-S2-P0 , AFR100-120-S2-P1 , AFR100-120-S2-P2 , AFR100-140-S2-P0 , AFR100-140-S2-P1 , AFR100-140-S2-P2 , AFR100-160-S2-P0 , AFR100-160-S2-P1 , AFR100-160-S2-P2 , AFR100-180-S2-P0 , AFR100-180-S2-P1 , AFR100-180-S2-P2 , AFR100-200-S2-P0 , AFR100-200-S2-P1 , AFR100-200-S2-P2 , AFR140-003-S2-P0 , AFR140-003-S2-P1 , AFR140-003-S2-P2 , AFR140-004-S2-P0 , AFR140-004-S2-P2 , AFR140-005-S2-P0 , AFR140-005-S2-P1 , AFR140-006-S2-P0 , AFR140-006-S2-P1 , AFR140-006-S2-P2 , AFR140-007-S2-P0 , AFR140-007-S2-P1 , AFR140-007-S2-P2 , AFR140-008-S2-P0 , AFR140-008-S2-P1 , AFR140-008-S2-P2 , AFR140-009-S2-P0 , AFR140-009-S2-P1 , AFR140-009-S2-P2 , AFR140-010-S2-P0 , AFR140-010-S2-P1 , AFR140-010-S2-P2 , AFR140-014-S2-P0 , AFR140-014-S2-P1 , AFR140-014-S2-P2 , AFR140-020-S2-P0 , AFR140-020-S2-P1 , AFR140-020-S2-P2 , AFR140-025-S2-P0 , AFR140-025-S2-P1 , AFR140-025-S2-P2 , AFR140-030-S2-P0 , AFR140-030-S2-P1 , AFR140-030-S2-P2 , AFR140-035-S2-P0 , AFR140-035-S2-P1 , AFR140-035-S2-P2 , AFR140-040-S2-P0 , AFR140-040-S2-P1 , AFR140-040-S2-P2 , AFR140-045-S2-P0 , AFR140-045-S2-P1 , AFR140-045-S2-P2 , AFR140-050-S2-P0 , AFR140-050-S2-P1 , AFR140-060-S2-P0 , AFR140-060-S2-P1 , AFR140-060-S2-P2 , AFR140-070-S2-P0 , AFR140-070-S2-P2 , AFR140-080-S2-P0 , AFR140-080-S2-P1 , AFR140-080-S2-P2 , AFR140-090-S2-P0 , AFR140-090-S2-P1 , AFR140-090-S2-P2 , AFR140-100-S2-P0 , AFR140-100-S2-P1 , AFR140-120-S2-P0 , AFR140-120-S2-P1 , AFR140-120-S2-P2 , AFR140-140-S2-P0 , AFR140-140-S2-P1 , AFR140-140-S2-P2 , AFR140-160-S2-P0 , AFR140-160-S2-P1 , AFR140-160-S2-P2 , AFR140-180-S2-P0 , AFR140-180-S2-P1 , AFR140-180-S2-P2 , AFR140-200-S2-P0 , AFR140-200-S2-P1 , AFR140-200-S2-P2 , AFR180-003-S2-P0 , AFR180-003-S2-P1 , AFR180-003-S2-P2 , AFR180-004-S2-P0 , AFR180-004-S2-P1 , AFR180-004-S2-P2 , AFR180-005-S2-P0 , AFR180-005-S2-P1 , AFR180-006-S2-P0 , AFR180-006-S2-P2 , AFR180-007-S2-P0 , AFR180-007-S2-P1 , AFR180-007-S2-P2 , AFR180-008-S2-P0 , AFR180-008-S2-P1 , AFR180-008-S2-P2 , AFR180-009-S2-P0 , AFR180-009-S2-P1 , AFR180-009-S2-P2 , AFR180-010-S2-P0 , AFR180-010-S2-P1 , AFR180-010-S2-P2 , AFR180-014-S2-P0 , AFR180-014-S2-P1 , AFR180-014-S2-P2 , AFR180-020-S2-P0 , AFR180-020-S2-P1 , AFR180-020-S2-P2 , AFR180-025-S2-P0 , AFR180-025-S2-P1 , AFR180-025-S2-P2 , AFR180-030-S2-P0 , AFR180-030-S2-P1 , AFR180-030-S2-P2 , AFR180-035-S2-P0 , AFR180-035-S2-P1 , AFR180-035-S2-P2 , AFR180-040-S2-P0 , AFR180-040-S2-P2 , AFR180-045-S2-P0 , AFR180-045-S2-P2 , AFR180-050-S2-P0 , AFR180-050-S2-P2 , AFR180-060-S2-P0 , AFR180-060-S2-P1 , AFR180-060-S2-P2 , AFR180-070-S2-P0 , AFR180-070-S2-P1 , AFR180-070-S2-P2 , AFR180-080-S2-P0 , AFR180-080-S2-P1 , AFR180-080-S2-P2 , AFR180-090-S2-P0 , AFR180-090-S2-P1 , AFR180-090-S2-P2 , AFR180-100-S2-P0 , AFR180-100-S2-P1 , AFR180-120-S2-P0 , AFR180-120-S2-P1 , AFR180-120-S2-P2 , AFR180-140-S2-P2 , AFR180-140-S2-P0 , AFR180-140-S2-P1 , AFR180-160-S2-P0 , AFR180-160-S2-P1 , AFR180-160-S2-P2 , AFR180-180-S2-P0 , AFR180-180-S2-P1 , AFR180-180-S2-P2 , AFR180-200-S2-P0 , AFR180-200-S2-P1 , AFR180-200-S2-P2 , AFR220-003-S2-P0 , AFR220-003-S2-P1 , AFR220-003-S2-P2 , AFR220-004-S2-P2 , AFR220-004-S2-P0 , AFR220-004-S2-P1 , AFR220-005-S2-P0 , AFR220-005-S2-P1 , AFR220-005-S2-P2 , AFR220-006-S2-P0 , AFR220-006-S2-P1 , AFR220-006-S2-P2 , AFR220-007-S2-P0 , AFR220-007-S2-P1 , AFR220-007-S2-P2 , AFR220-008-S2-P0 , AFR220-008-S2-P1 , AFR220-008-S2-P2 , AFR220-009-S2-P0 , AFR220-009-S2-P1 , AFR220-009-S2-P2 , AFR220-010-S2-P0 , AFR220-010-S2-P1 , AFR220-010-S2-P2 , AFR220-014-S2-P0 , AFR220-014-S2-P1 , AFR220-014-S2-P2 , AFR220-020-S2-P0 , AFR220-020-S2-P1 , AFR220-020-S2-P2 , AFR220-025-S2-P0 , AFR220-025-S2-P1 , AFR220-025-S2-P2 , AFR220-030-S2-P0 , AFR220-030-S2-P1 , AFR220-030-S2-P2 , AFR220-035-S2-P0 , AFR220-035-S2-P1 , AFR220-035-S2-P2 , AFR220-040-S2-P0 , AFR220-040-S2-P1 , AFR220-040-S2-P2 , AFR220-045-S2-P0 , AFR220-045-S2-P1 , AFR220-045-S2-P2 , AFR220-050-S2-P0 , AFR220-050-S2-P1 , AFR220-050-S2-P2 , AFR220-060-S2-P0 , AFR220-060-S2-P1 , AFR220-060-S2-P2 , AFR220-070-S2-P0 , AFR220-070-S2-P1 , AFR220-070-S2-P2 , AFR220-080-S2-P0 , AFR220-080-S2-P1 , AFR220-080-S2-P2 , AFR220-090-S2-P0 , AFR220-090-S2-P1 , AFR220-090-S2-P2 , AFR220-100-S2-P0 , AFR220-100-S2-P1 , AFR220-100-S2-P2 , AFR220-120-S2-P0 , AFR220-120-S2-P1 , AFR220-120-S2-P2 , AFR220-140-S2-P0 , AFR220-140-S2-P1 , AFR220-160-S2-P0 , AFR220-160-S2-P1 , AFR220-160-S2-P2 , AFR220-180-S2-P0 , AFR220-180-S2-P1 , AFR220-180-S2-P2 , AFR220-200-S2-P0 , AFR220-200-S2-P1 , AFR220-200-S2-P2 , AFR140-100-S2-P2 , AFR075-008-S2-P1 , AFR075-010-S2-P2 , AFR075-180-S2-P2 , AFR100-003-S2-P1 , AFR140-004-S2-P1 , AFR140-005-S2-P2 , AFR140-050-S2-P2 , AFR140-070-S2-P1 , AFR180-005-S2-P2 , AFR180-006-S2-P1 , AFR180-100-S2-P2 , AFR220-140-S2-P2 ,
- Konfigurátor 3D modelů podle typu motoru
- 3D model planetové převodovky AFR 060
- 3D model planetové převodovky AFR 075
- 3D model planetové převodovky AFR 100
- 3D model planetové převodovky AFR 140
- 3D model planetové převodovky AFR 180
- 3D model planetové převodovky AFR 220
Výše uvedené 3D modely jsou s náhodně vygenerovanou motorovou přírubou. Pro vygenerování 3D modelu podle typu motoru použijte náš Konfigurátor.
